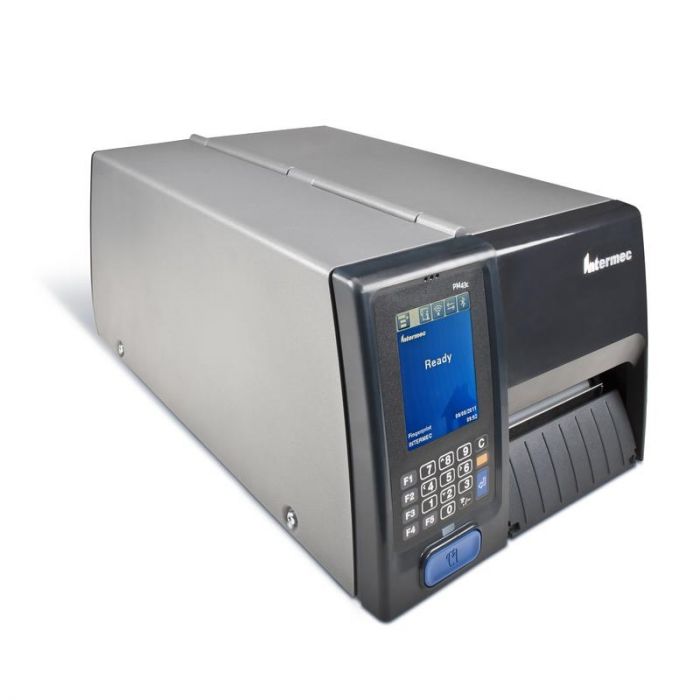

Honeywell pm43a11000000210 Ncnr (o) Pm43a Printer Full Touch Display Ethernet Fixed Hanger Direct Thermal 203dpi No Power Cord Buy 1-974028-025

PM43 / PM43c Industrial Printer Product Specifications

Environment

Humidity: 20 to 80% non-condensing
Operating Temperature: +5C to +40C (+41F to +104F)
Storage Temperature: -20C to +70C (-4F to +152F)

Interfaces

User Interfaces:
Color Touch User Interface
Icon User Interface
User Interface Languages:
Color Touch interface and Web Page support in English, Russian, German, French, Portuguese, Spanish, Italian, Korean, Simplified and Traditional Chinese
Optional:
Parallel IEEE 1284
Industrial Interface (8 digital in/out, 4 analog relays, 1 RS232/422/485 port)
Dual Serial ports RS-232, RS-422, RS-485 and 20mA Current Loop
Dual USB Host/Boot
Wireless:
IEEE 802.11 b/g/n + Bluetooth?
Wi-Fi Certified, CCX (Cisco?) version 4 Certified
Static WEP (64 bit and 128 bit), Dynamic WEP (TLS, TTLS, PEAP, LEAP, EAP-FAST), WPA (THIP/CCKM Personal and Enterprise, WPA2 (AES-CCMP/CCKM Personal and Enterprise)
Multiple industrial-antenna options for maximized coverage
Standard:
Ethernet 10/100 Mbps
RS-232, up to 115.2 kB/s
Supported Protocols:
TCP/IP-suite (TCP, UDP, ICMP, IGMP, etc.), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv1/2c/3, (SMTP.SNMP-MIBII supported over UDP/IP private enterprise MIB included)
Supports IPv4 and IPv6
“No-touch” configuration capability through embedded RFID chip
Supported Serial Protocols
Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, DSR/DTR, RTS/CTS
IPL: XON/XOFF, Intermec Std. Protocol
USB 2.0
USB Host/Boot (X1 on PM43C, X2 on PM43)
Graphics: Supports PCX, PNG, GIF and BMP file formats. Other formats supported with Label Generation Tools.
Fonts:
Monotype font engine
Non-Latin fonts available through WTLE

Memory

SDRAM: 128MB
Flash ROM: 128MB
Memory/Storage Extensions: Multi-GB USB memory device (FAT16/FAT32 USB drivers supported)

Physical Characteristics

Height:
PM43: 294.61 mm (11.6 in)
PM43c: 181 mm (7.13 in)
PM43c with Dome Door: 244.87 mm (9.64 in)
Length:
PM43: 483.54 mm (19.04 in)
PM43c: 431.84 mm (17 in)
PM43c with Dome Door: 500.22 mm (19.04 in)
Width:
PM43: 284.2 mm (11.19 in)
PM43c: 252.5 mm (9.94 in)
PM43c with Dome Door: 252.5 mm (9.94 in)
Weight:
PM43: 15.82 kg (34.88 lbs.)
PM43c: 12.5 kg (27.65 lbs.)
PM43c with Dome Door: 12.71Kg (28.02 lbs.)

Power

AC Voltage: 100 to 240 VAC, 45 to 65Hz
PFC Regulation: IEC320/C14
Power Consumption: Standby 9W; Peak 300W

Print Specifications

Max Width:
Max. Width with 203 dpi: 108 mm (4.25 in)
Max. Width with 300 dpi: 106 mm (4.17 in)
Max. Width with 406 dpi: 104 mm (4.09 in)
Max Length:
Depending on width (203 dpi to 406 dpi): (1.2 m) 48 in to (4.8 m) 191 in
Print Speed:
100 300 mm/s (4 12 ips) variable (203/300 dpi)
100 250 mm/s (4 10 ips) variable (406 dpi)
Resolution:
8 dots/mm (203 dpi)
11.8 dots/mm (300 dpi)
16 dots/mm (406 dpi)

Media Type: Labels and Tags, Linerless and Linered media
Max Label Width:
Max/Min Width: 114.3 /19.05 mm (4.5 /0.75 in)
Thickness: 3 to 10.4 mil
Style: Roll-fed or fanfold
Sensing: Gap, notch, black mark, continuous
Label Roll Max Diameter:
Long Door: 152 mm (6 in)
All Other Doors: 213 mm (8.38 in)
Label Roll Core: 38 76 mm (1.5 3 in)

Media Type: Ribbons
Label Roll Max Diameter: 80 mm (3.15 in), approx. 450m
Label Roll Core: Core ID: 25.4 mm (1 in)
Media Type: Wax, mid-range, resin

Media Type: RFID
RFID Standards and Frequencies:
18000-6C / EPC Class 1 Generation 2 865-928 MHz radio configured to comply with local UHF RFID regulations including FCC and ETSI. Contact local representative for availability in particular regions.

Supported Bar Code Symbologies

All major 1D and 2D symbologies are supported.

Standards Supported:
UPC/EAN Shipping Container; UCC/EAN 128 Serial Shipping Container; MH10.8 Shipping Label; AIAG (shipping parts label); OGMARS; POSTNET; HIBCC; ISBT 128; GM1724; UPS shipping label; Global Transport Label

Software

Printer Command Languages:
C# for Printers
IPL
Direct Protocol
ZSim (ZPL)
DSim (DPL)
XML enabled for SAP? AII and Oracle? WMS

Applications / Drivers:
InterDriver Windows printer driver
Intermec Certified Device Types for SAP?
Intermec label design and print package

Smart Printing Languages:
C# for Printers
Smart Printing Developer Resource Kit
Write apps with .NET-compatible development environments
Intermec Fingerprint
Use Intermec Fingerprint ApplicationBuilder (IFAB)

Configuration & Device Management Support:
PrintSet for printer configuration
SmartSystems
Sophisticated web interface for configuration, upgrade and 1:1 management
Wavelink Avalanche

Accessories

Options and Accessories
RFID UHF, integral self-strip unit with liner takeup, Label Taken Sensor (LTS), Full Batch Label/Liner Rewinder, parallel interface board, additional serial interface boards*, industrial interface boards*, real time clock, media supply hub, Collapsible Ribbon core cutter, Media low sensor, Linerless.
*Not applicable when using IPL firmware.
