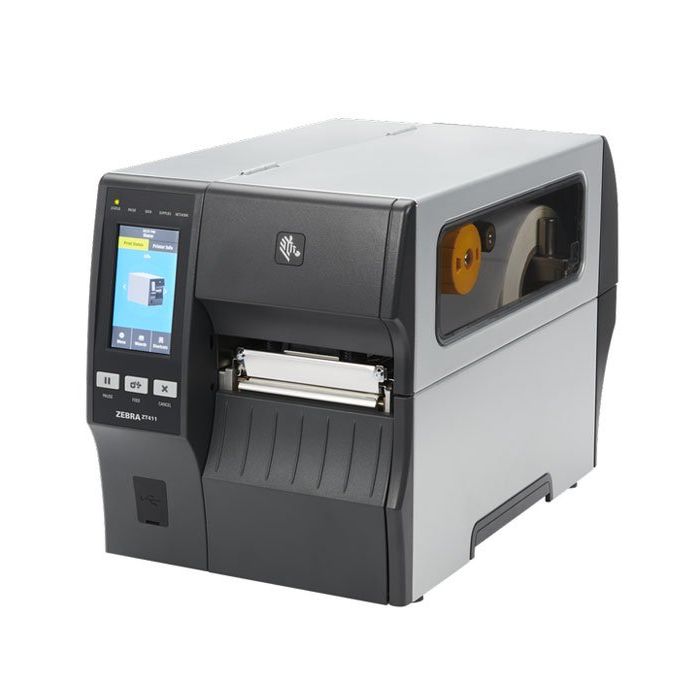

Zebra ZT41142-T110000Z ait tt printer zt411; 4" 203 dpi us cord serial usb 10100 ethernet bluetooth 41mfi host peel ezpl

• Continuous Paper
• Die-cut Label
• Notch
• Black Mark

RFID

– Integrated RFID system is user-upgradable in the field
– Prints and encodes tags with a minimum pitch of 0.6 in./16 mm
– Supports tags compatible with: UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols
– Compliant with Global RFID radio to support multinational deployments
– Automatically eliminate complex RFID placement guidelines with adaptive encoding technology
– Variable inlay placement supports a range of inlay positions for maximum media flexibility
– Track performance with RFID job-monitoring tools
– Support for industry standard multi-vendor chip-based serialization (MCS)
– Supports block permalocking of user memory compatible with ATA Spec 2000
– Integrated ThingMagic® RFID reader/encoder

STANDARD FEATURES

– Print Methods: Thermal transfer and direct thermal printing
– Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window
– Side-loading supplies path for simplified media and ribbon loading
– Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
– Communications: USB 2.0, high-speed, RS-232 Serial, 10/100 Ethernet, Bluetooth 2.1, USB Host
– Back-lit, multi-line graphic LCD display with intuitive menu and easy-to-use keypad for quick operation
– Bi-colored status LEDs for quick printer status
– ENERGY STAR® qualified

PHYSICAL CHARACTERISTICS

Dimensions (closed):
ZT410: 19.5 in. L x 10.6 in. W x 12.75 in. H
495 mm L x 269 mm W x 324 mm H
ZT420: 19.5 in. L x 13.25 in. W x 12.75 H
495 mm L x 336 mm W x 324 mm H
Weight:
ZT410: 36 lbs./16.33 kg
ZT420: 40 lbs./18.14 kg

PRINTER SPECIFICATIONS

Resolution:
203 dpi/8 dots per mm
300 dpi/12 dots per mm (optional)
600 dpi/24 dots per mm (optional for ZT410 only)
Memory:
256 MB SDRAM memory
512 MB on-board linear Flash memory
Maximum Print Width:
ZT410: 4.09 in./104 mm
ZT420: 6.6 in./168 mm
Maximum Print Speed:
ZT410: 14 ips/356 mm per second
ZT420: 12 ips/305 mm per second
Media Sensors:
Dual media sensors: transmissive and reflective
Print Length:
ZT410
– 203 dpi: 157 in./3988 mm • 300 dpi: 73 in./1854 mm
– 600 dpi: 39 in./991 mm
ZT420
– 203 dpi: 102 in./2591 mm
– 300 dpi: 45 in./1143 mm

MEDIA CHARACTERISTICS

Maximum Media Width:
ZT410
– 1.00 in./25.4 mm to 4.5 in./114 mm tear/cutter
– 1.00 in./25.4 mm to 4.25 in./108 mm peel/rewind
ZT420
– 2.00 in./51 mm to 7.0 in./178 mm tear/cutter
– 2.00 in./51 mm to 6.75 in./171 mm peel/rewind
Maximum Media Roll Size: 8.0 in./203 mm O.D. on a 3 in./76 mm I.D. core
Thickness: 0.0023 in./0.058 mm to 0.010 in./0.25 mm
Media Types: Continuous, die-cut, notch, black-mark

RIBBON CHARACTERISTICS

Standard Length: 1476 ft./450 m
Width:
ZT410: 2.00 in./51 mm to 4.33 in./110 mm
ZT420: 2.00 in./51 mm to 6.85 in./174 mm
Core I.D: 1.0 in./25 mm

ENVIRONMENTAL

Operating Temperature:
Thermal transfer: 40º F to 104º F/5º C to 40º C
Direct thermal: 32º F to 104º F/0º C to 40º C
Storage/ Transportation Temperature: -40º F to 140º F/-40º C to 60º C
Operating Humidity: 20% to 85% non-condensing
Storage Humidity: 5% to 85% non-condensing

OPTIONS AND ACCESSORIES

User Interface: Color LCD
Communication:
– Parallel (Bi-directional interface)
– Wireless dual radio with 802.11ac Wi-Fi and
Bluetooth 4.1:
– Wireless 802.11 a/b/g/n
– Dual USB Host ports
– 10/100 Ethernet
Media Handling:
Rewind: Internally rewinds a full roll of printed labels on 3” core, or peels and rewinds liner (factory installed only)
– Peel: Front-mount, passive peel option
– Peel: Liner take-up — additional full-roll liner take-up spindle accommodates standard printer base
– Cutter: Front-mount guillotine cutter and catch tray
– 1 in. I.D. Core media supply hanger
– Ink-side in ribbon supply spindle
