Dahua DH-SD3C205DB-GNY-A-PV - cámara ip ptz de 2 megapixeles/ 5x zoom óptico/ wizsense/ dual light/ ir 50 mts/ micrófono y altavoz integrado/ audio vías/ protección perimetral/ disuasión activa/ 1 led luz blanca/ ip66/ poe/
Precio especial $3,028.00 IVA incluido + Envio $150 MXN
Antes $3,512.00
Disponible 72 Pzas
Antes $3,512.00
Disponible 72 Pzas
sku: DH-SD3C205DB-GNY-A-PV
pub
MX0000101851
SD3C205DB-GNY-A-PV

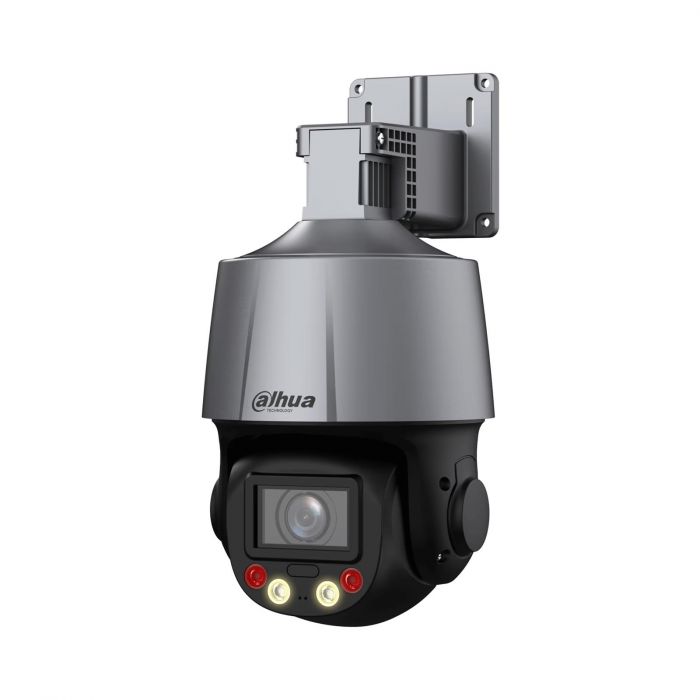

2MP 5x Smart Dual Light WizSense Network PTZ Camera
> 1/2.8' 2Megapixel CMOS.
> 5x optical zoom.
> Max. 25/30fps@1080P.
> IR distance up to 50 m.
> Warm light illumination distance up to 30 m.
> Built-in Mic and Speaker for Two-way Talk.
> Perimeter protection.
> SMD 3.0.
> 12 VDC/PoE power supply.
> IP66.
| Camera | |
| Image Sensor | 1/2.8' CMOS |
| Pixel | 2 MP |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Electronic Shutter Speed | 1 s–1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.05 lux@F1.6 B/W: 0.005 lux@F1.6 0 lux (IR light on) |
| Illumination Distance | 50 m (164.04 ft) (IR);30 m (98.43 ft) (Warm light) |
| Illuminator On/Off Control | Zoom Prio; Manual; Auto; Off |
| Illuminator Number | 2 (IR); 2 (Warm light) |
| Lens | |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.6–F3.0 |
| Field of View | H: 99.6°–31.5°; V: 53°–17.8°; D: 118.8°–36.2° |
| Optical Zoom | 5 × |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 1.5 m (4.92 ft) |
| Iris Control | Fixed |
| DORI Distance | |
| PTZ | |
| Pan/Tilt Range | Pan: 0° to 355° Tilt: –15° to +90° |
| Manual Control Speed | Pan: 0.1°/s–36°/s Tilt: 0.1°/s–25.8°/s |
| Preset Speed | Pan: 35.7°/s; Tilt: 27.1°/s |
| Preset | 300 |
| Power-off Memory | Yes |
| Idle Motion | Preset |
| Intelligence | |
| IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification |
| SMD | Yes |
| Active Deterrence | |
| Light Warning | White light warning Flash duration: 5 s–30 s Flash frequency: high, medium, low |
| Sound Warning | Offers 11 types of sound alarms, and supports importing up to 10 custom sound alarms. The sound alarm can be set to play 1 to 10 times. |
| Video | |
| Video Compression | H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+ |
| Streaming Capability | 3 streams |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); VGA (640 × 480); CIF (352 × 288) |
| Video Frame Rate | Main stream: 1080p/1.3M/720p @(1–25/30 fps) Sub stream 1: D1/CIF/VGA@ (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p @(1–25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 64 kbps–8192 kbps H.265: 25 kbps–6400 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes |
| White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Digital Zoom | 16× |
| Image Rotation | 180° |
| S/N Ratio | ≥55 dB |
| Audio | |
| Audio Compression | G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Network Protocol | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; SMB; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI;SDK;P2P |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | FTP/SFTP; Micro SD card (512 GB); NAS |
| Browser | IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions Safari 10 and later versions |
| Management Software | DMSS; DSS Pro |
| Mobile Client | iOS; Android |
| Certification | |
| Certifications | CE: EN55032/EN55024/EN50130-4 |
| Port | |
| Audio Input | 1 channel (built-in mic) |
| Audio Output | 1 channel (built-in speaker) |
| Alarm Linkage | Capture; recording; send email; preset; audio; warning light |
| Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Power | |
| Power Supply | 12 VDC, 1.5 A ± 25% PoE (802.3af) |
| Power Consumption | Basic: 3 W Max: 12 W (illuminator + PTZ + speaker) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Protection | IP66; TVS 2000 V lightning proof; surge protection; voltage transient protection |
| Structure | |
| Product Dimensions | 142.6 mm × 140.0 mm × 236.2 mm (5.61' × 5.51' × 9.30') (L × W × H) |
| Net Weight | 1.1 kg (2.43 lb) |
| Gross Weight | 1.7 kg (3.75 lb) |
| Marca | Dahua |
|---|---|
| MPN: | DH-SD3C205DB-GNY-A-PV |
