Zebra DS3678-XR3U42A2SVW evm/dcs, ds3678-xr, extended range 1d/2d imager, cordless, fips, usb kit includes scanner, 7 foot cable, cradle, and power, requires line cord (23844-00-00r), vibration motor, industrial green

Precio especial $20,794.00 IVA incluido + Envio $150 MXN
Antes $24,121.00
Disponible 13 Pzas
sku: DS3678-XR3U42A2SVW
pub
MX0000104475
Precios sujetos a cambios sin previo aviso
Pagos 100% seguros
Entrega Aprox.
Envio Nacional | Condicion: Nuevo
Logo

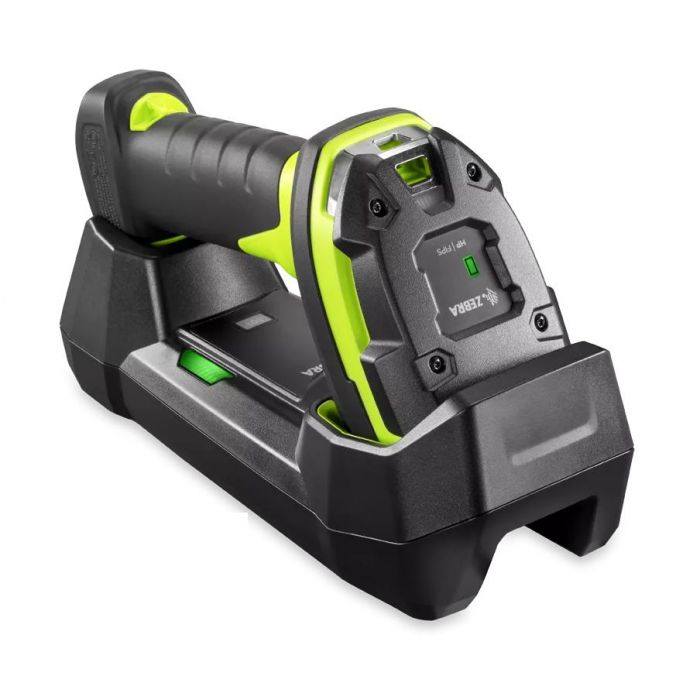

Zebra DS3600 DS3678-XR

Barcode Scanner Kit Wireless Connectivity - 104.99 ft Scan Distance - 1D, 2D - Laser - Imager - Bluetooth - USB - Industrial Green - IP65, IP68 - Industrial, Manufacturing, Warehouse, Inventory, Self-checkout, Outdoor

MFG. PART: DS3678-XR3U42A2SVW

  • Host Interface: USB
  • Product Type: Barcode Scanner Kit
  • Connectivity Technology: Wireless
  • Scanning Distance: 104.99 ft

General Information

Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: DS3678-XR3U42A2SVW
Manufacturer Website Address: http://www.zebra.com
Brand Name: Zebra
Product Series: 3600
Product Model: DS3678-XR
Product Name: DS3600 DS3678-XR Barcode Scanner Kit
Product Type: Barcode Scanner Kit

Technical Information

Connectivity Technology: Wireless
Scanning Capability: 1D, 2D
Barcode Symbology Supported:

1D:

  • Code 39
  • Code 128
  • Code 93
  • Codabar/NW7
  • Code 11
  • MSI Plessey
  • UPC/EAN
  • I 2 of 5
  • Korean 3 of 5
  • GS1 DataBar
  • Base 32 (Italian Pharma)

2D:

  • PDF417
  • Micro PDF417
  • Composite Codes
  • TLC-39
  • Aztec
  • DataMatrix
  • MaxiCode
  • QR Code
  • Micro QR
  • Chinese Sensible (Han Xin)
  • Postal Codes
  • DotCode

Digimarc:

  • Digital watermark technology

IUID Support:

  • Supports IUID parsing, the ability to read and separate IUID fields per application requirements
Light Source: Laser
Image Sensor Type: Imager
Scan Mode: Trigger
Scanner Range: Extended Range
Scanning Distance: 104.99 ft
Features: Vibration, Beep, Notification LED, Data Formatter, Data Parser, Diagnostic Reporting
Field of View (Horizontal): 42°
Field of View (Vertical): 27°
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 360°
Maximum Ambient Light: 107639 lux
Drop Specification:
  • DS36X8: Withstands multiple 10.0 ft/3.0 m drops to concrete at room temperature
  • Cordless: Withstands multiple 8.0 ft/2.4 m drops to concrete at -20° C to 50° C
Minimum Print Contrast: 25%
Minimum Element Resolution (Code 39): 5 mil
Maximum Element Resolution (Code 39): 100 mil
Minimum Element Resolution (DataMatrix): 10 mil
Maximum Element Resolution (DataMatrix): 0.20'
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 25kV

Network & Communication

Bluetooth: Yes

Interfaces/Ports

Host Interface: USB

Battery Information

Battery Chemistry: Lithium Ion (Li-Ion)
Battery Capacity: 3100 mAh

Environmental Conditions

Operating Temperature: -4°F (-20°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 5% to 95%

Physical Characteristics

Rugged: Yes
Color Family: Green
Product Color: Industrial Green
Durability: Dust Proof, Water Proof
Height: 7.3'
Width: 3'
Depth: 5.6'
Weight (Approximate): 14.46 oz

Miscellaneous

Ingress Protection (IP) Rating: IP65, IP68
Application/Usage: Industrial, Manufacturing, Warehouse, Inventory, Self-checkout, Outdoor
Más información
MarcaZebra
MPN:DS3678-XR3U42A2SVW
