Dahua DHI-HY-SA40A-R8 wisualarm - detector de humo inalambrico (interconectable hasta 24 disp), sensor fotoeléctrico, sonido alarma 85db, visual y audible, batería 10 años, certificaciones tüv and ce, #wisualarm
Precio especial $494.00 IVA incluido + Envio $150 MXN
Antes $573.00
Disponible 579 Pzas
Antes $573.00
Disponible 579 Pzas
sku: DHI-HY-SA40A-R8
pub
MX0000105056
DHI-HY-SA40A-R8
| Características | |
|---|---|
| Interconectables | Si |
| Tecnología de conectividad | Alámbrico |
| Color del producto | Blanco |
| Material de la cubierta | ABS |
| Control de energía | |
| Fuente de energía | Batería |
| Voltaje de la pila | 3 V |
| Tecnología de batería | Ión de litio |
| Condiciones ambientales | |
| Intervalo de temperatura operativa (T-T) | -10 - 55 °C |
| Intervalo de humedad relativa para funcionamiento | 0 - 95% |
| Peso y dimensiones | |
| Ancho | 81.5 mm |
| Profundidad | 51.6 mm |
| Peso | 110 g |
HY-SA40A-R8

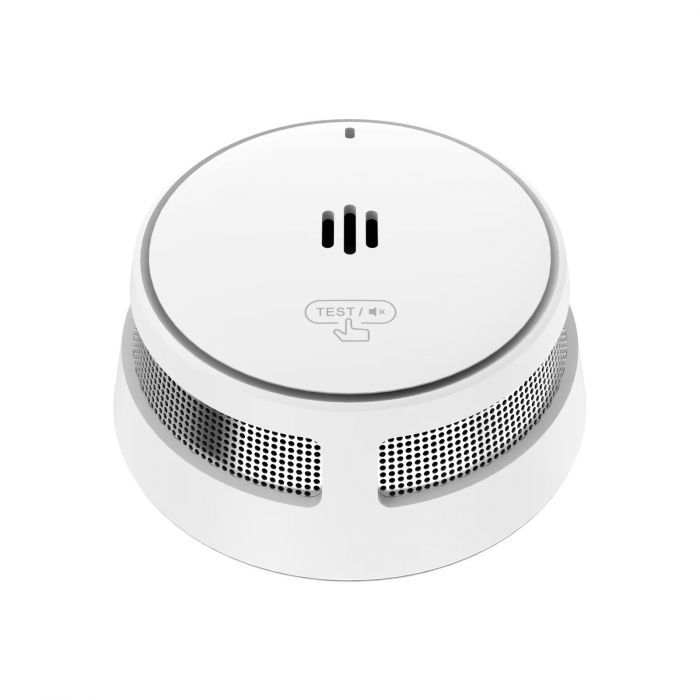

Wireless Interconnected Smoke Alarm
> Split-spectrum sensor technology
> Test and silence features in one single button, silenced by a working infrared remote controller
> Loud sound output over 85 dB(A) at 3 meters
> Low quiescent current consumption
> Surface-mount device (SMD) circuit board design
> Low battery warning signal
> Sealed lithium battery, easy installation
> Wireless interconnected with maximum of 24 devices
> Test and silence features in one single button, silenced by a working infrared remote controller
> Loud sound output over 85 dB(A) at 3 meters
> Low quiescent current consumption
> Surface-mount device (SMD) circuit board design
> Low battery warning signal
> Sealed lithium battery, easy installation
> Wireless interconnected with maximum of 24 devices
| Working Principle | |
| Collection Type | Smoke |
| Sampling Period | 9 s |
| Working Principle | Photoelectric |
| Alarm | |
| Alarm Type | Smoke alarm, fault warning, low battery warning |
| Alarm Volume | 85dB (A) at 3 m (9.84 ft) |
| Alarm Mode | Visual and audible alarm |
| Silencing Function | Yes |
| Silence Duration | 9 min |
| Infrared Silence | Yes |
| Pre-Set Alarm Value | 0.2dB/m-0.3dB/m |
| Basic Parameters | |
| Indicator Light | Alarm, fault and operation indicator |
| LED Instructions | Standby: Green indicator flashes once per minute Alarm: Red indicator flashes once per second Fault: Red indicator flashes twice per minute |
| Operating Frequency | 868MHZ |
| Radio Signal Range | Up to 1000 m (3280.84 ft) in open air |
| Maximum Number of Interconnected Units | 24pcs |
| Coverage Area | When the height of the space is less than 8 m (26.25 ft), the protection area of a device is 20 m2–40 m2 |
| Power Supply | |
| Battery Life | 10 years |
| Power Source | 3V CR123A lithium battery (non-replaceable) |
| Operating Current | Monitoring current: ≤ 15uA (avg.) Alarm current: ≤ 35mA (avg.) |
| Operating Ambient | |
| Operating Environment | Indoor |
| Operating Temperature | -10°C to +55°C (+14°F to +131°F) |
| Operating Humidity | ≤ 95% RH (non condensing) |
| Appearance | |
| Color | White |
| Casing | PC+ABS |
| Dimensions | φ81.5 mm × H51.6 mm (φ3.21' × H2.03') |
| Weight | 110 g (0.24 lb) |
| Installation | Ceiling Mount |
| Certification | |
| Certifications | TÜV and CE listed |
| Compliance Standard | EN 14604:2005+AC:2008 EN 62479:2010 EN 50130-4:2011+A1 EN 301489-1 V 2.2.3:2019 EN 301489-3 V 2.1.1:2019 |
| Marca | Dahua |
|---|---|
| MPN: | DHI-HY-SA40A-R8 |
