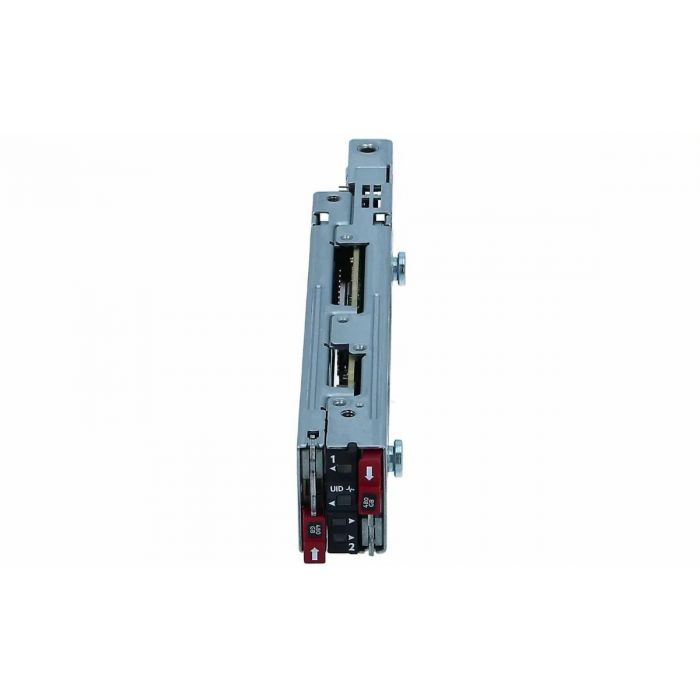

Hpe P48183-B21 ns204i-u gen11 controlado raid pci express
Precio especial $22,394.00 IVA incluido + Envio $150 MXN
Antes $25,977.00
Disponible 1 Pzas
Antes $25,977.00
Disponible 1 Pzas
sku: P48183-B21
pub
MX0000105208
*Agunas imagenes son representativas
P48183-B21 HPE NS204I-U GEN11 NVME HOT PLU G BOOT OPTIMIZED STORAGE DEVICE G BOOT OPTIMIZED STORAGE DEVICE
P48183-B21
Descripción
HPE NS204i-u Gen11. Interfaz de host: PCI Express
Technical Information
| Puertos e Interfaces | |
|---|---|
| Interfaz de host | PCI Express |
| Desempeño | |
| Niveles RAID | 1 |
| Detalles técnicos | |
| Niveles RAID | 1 |
| Cumplimiento de sostenibilidad | Si |
| Certificados de conformidad | RoHS |
* Mas datos
P48183-B21
HPE NS204i-u Gen11 - Storage controller (RAID)
- NVMe PCIe
- RAID 1
- PCIe 3.0
HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device
Do you need to simplify data segregation? HPE Boot Device Options offer enterprise customers turnkey, resilient boot solutions that easily segregate the OS from the data storage plane in today’s popular OS for virtualized environments—VMware®, Linux®, Windows. NS204i presents itself to your management interface as a single directly connected NVMe drive, not a RAID controller. As the NS204i is a hardware boot device, only RAID 1 mode is supported and it will not operate in any other RAID mode. NS204i is plug-and-play with no need to configure or manage the device. Always ensure you are running the latest HPE iLO version and update server BIOS, FW and drivers when they become available.
Dedicated hardware RAID 1 OS boot device
Includes two HPE enterprise-class 480 GB NVMe M.2 SSDs
Utilizes native in-box OS NVMe drivers
Hot-plug universal installation (No longer requires a PCIe slot)
No cables or backplanes required
Simple and Secure OS Mirroring Through Dedicated Hardware RAID 1
- HPE Boot Device Options is a complete, turnkey optimized that is easy to deploy—no need to configure or format, simply insert and it works, no GUI or user setup required.
- Pre-configured RAID 1 boot device utilizes a single HPE Synergy designed card that connects to PCIe connection under drive cages to safely isolate OS from user data in today’s popular virtualized environments.
- It uses native in-box drive support for VMware, Linux, and Windows OS.
- It enables all drive bays to be used for data, greatly reducing server complexity, while providing an economical way for booting in virtualized environments.
State-of-the-Art, Hardware Accelerated RAID 1 NVMe Boot Device
- HPE enterprise-class NVMe M.2 SSDs deliver enhanced data protection with power loss protection and error correction.
Increased Storage Density and Dedicated Hardware RAID 1 Resiliency for Boot Device
- HPE Boot Device Options provide separate, redundant disk solutions for the OS that enables a more robust, optimized compute platform.
- Dedicated hardware RAID 1 boot device mirroring helps eliminate downtime due to a failed OS drive—even if one drive fails the business continues running.
- HPE Boot Devices are certified for VMware and Microsoft Azure Stack HCI for increased flexibility.
Full Hardware RAID 1 Boot Solution for VMware Environments
- HPE USB flash drive with dual 32 GB microSD cards and on-board RAID 1 boot device deliver redundant OS boot without consuming server storage drive bays.
- It is engineered with enterprise-class high-endurance NAND for non-stop data center environments.
- It has integrated on-board RAID 1 for customers requiring dual boot solutions.
| TechnicalSpecifications | |
|---|---|
| Capacity | 480 GB |
| Form factor | PCIe half-height, half-length (HHHL) card |
| Usable capacity | 480 GB |
| Compliance | RoHS, Lot 9 |
| Cache | N/A |
| RAID levels | Preconfigured hardware RAID 1 |
| Product dimensions (imperial) | 8.75 x 9.94 x 2.56 in |
| Weight | 0.421 lb |
| Specifications | |
|---|---|
| Dimensions & Weight / Depth | 25.24 cm |
| Dimensions & Weight / Height | 6.51 cm |
| Dimensions & Weight / Weight | 190 g |
| Dimensions & Weight / Width | 22.23 cm |
| General / Product Type | Storage controller (RAID) |
| Header / Brand | HPE |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| System Requirements / OS Required |
|
| Dimensions & Weight | |
| Depth | 25.24 cm |
| Height | 6.51 cm |
| Weight | 190 g |
| Width | 22.23 cm |
| General | |
| Device Type | Storage controller (RAID) |
| Host Bus | PCIe 3.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 3 years |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
| Storage Controller | |
| Interface | NVMe PCIe |
| Max Storage Devices Qty | 2 |
| RAID Level | RAID 1 |
| Supported Devices | Disk array (RAID) |
| Marca | Hpe |
|---|---|
| MPN: | P48183-B21 |
