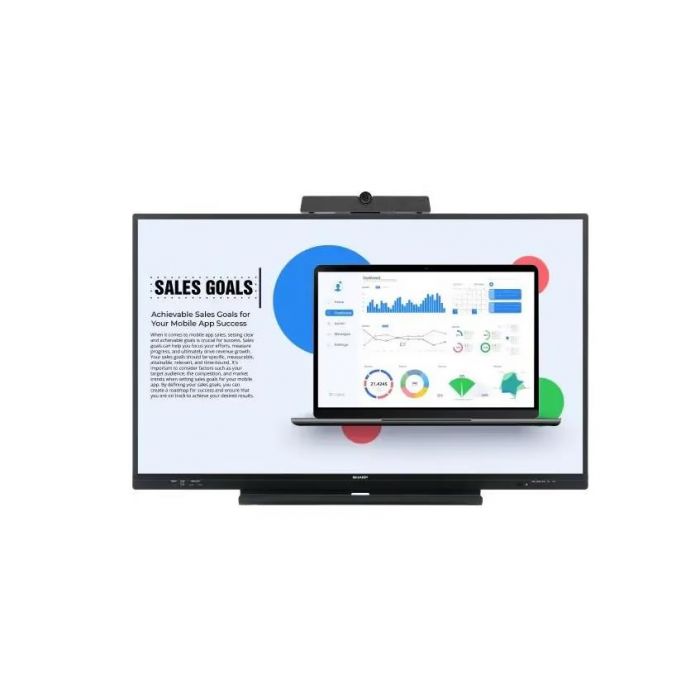

Sharp PN-LC652 aquos board 65 4k lcd infrared interactive monitor 16/7.3
Precio especial $84,750.00 IVA incluido + Envio $150 MXN
Antes $98,310.00
Disponible 2 Pzas
Antes $98,310.00
Disponible 2 Pzas
sku: PN-LC652
pub
MX0000105219
The SHARP PN-LC652 AQUOS BOARD® collaboration display combines genuine 4K Ultra-HD resolution and an intuitive "Pen-on-Paper" user experience. The single USB-C connector makes it so simple to walk into a room, plug in your device and start working together straightaway. The PN-LC652 AQUOS BOARD collaboration display also features an integrated controller with whiteboard, overlay, and wireless functionality to help enhance your productivity
- Built-In Expansion Slot
Allows for seamless integration of current and future NEC accessories and third-party components. - Open Pluggable Specification (OPS)
The first industry-wide standardization in option slots that allows for easier installation, use and maintenance of digital signage. - Built-In Speakers
Enhance the visual experience with superior sound. - Wired Network Connection
Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability). - USB Viewer
Permits playback (without a PC) of presentations or display images stored as JPG files from a USB flash drive. - LED Backlight
Provides for industry-leading low power consumption and less hazardous materials. - Integrated MultiMedia Player
Allows the ability to play video, audio or image files directly off USB. - 4K Resolution
Provides the ultimate in screen clarity. - Round-The-Clock Scheduler
Allows for advanced scheduling of monitor powering up/down, increasing panel lifetime, reducing power consumption and saving the time and expense of finding and purchasing a third-party scheduling solution. - RS-232C and LAN control capability
Permits flexible remote-control capabilities from connected devices. - Wireless LAN (Optional)
Allows you to transmit images from a PC wirelessly to the projector, eliminating the need for traditional cumbersome cables. - Three HDMI inputs
Allows for simultaneous digital connections of high-definition sources, such as Blu-ray players, cable boxes, satellite receivers and computers.
Features
- 65" Class (64.5" diagonal) Screen Size
- Brilliant Ultra-HD (3,840 x 2,160) Direct Lit LCD Display
- Built-in SoC controller with Arm® Cortex® - A55 quad-core processor
- Built-in Whiteboard application for quick meeting notes
- SHARP Pen Software Included to create on-screen annotations and graphics***
- Optional PN-ZCMS1 AV Soundbar available
- SHARP Touch Viewer™ Software provides Easy Manipulation of Multiple File Types**
- Built-in 15W per Channel Stereo Audio System
- 5-Year Limited Warranty
- Built-in Wireless LAN and Bluetooth® connectivity for wireless presentations**
- 450 cd/m2 Brightness; 1,200:1 Contrast Ratio
- OPS – Compliant Expansion Slot
*Screen image simulated.
**Compatible with Windows®, Android™, iOS®, macOS®, iPadOS®, Chrome™ OS
***Available for download via included download application
PRODUCT HIGHLIGHTS
The SHARP PN-LC652 AQUOS BOARD interactive display system combines genuine 4K Ultra-HD resolution and an intuitive “Pen-on-Paper” user experience. The single USB-C connector makes it so simple to walk into a room, plug in your device and start working together straight away. The AQUOS BOARD interactive display also features an integrated controller with whiteboard, overlay, and wireless functionality to help enhance your productivity.
- Brilliant Ultra-HD (3,840 x 2,160) Direct Lit LCD Display
- Built-in SoC controller with Arm Cortex - A55 quad-core processor
- Built-in Whiteboard application for quick meeting notes
- Built-in Wireless LAN and Bluetooth connectivity for wireless presentations
- SHARP Pen Software Included to create on-screen annotations and graphics
- SHARP Touch ViewerTM Software provides Easy Manipulation of Multiple File Types
- OPS – Compliant Expansion Slot
- 400 cd/m2 Brightness; 1,200:1 Contrast Ratio
- Built-in 15W per Channel Stereo Audio System
Additional Features
- 4K Resolution
- 4K Ready
- 60 Hz LED Frame Rate
- Built-In Speakers
- LED Backlight
- Power Management
- Built-in SoC Controller
- Wired Network Connection
- LAN control capability
- Pen-on-paper®
- Contrast Ratio (1200:1)
Optical
Display Technology
TFT LCD
Accessories
Included:
- AC power cord:1
- Remote control unit:1
- Remote control unit battery (AAA size) : 2
- Setup manual:1
- Blank sticker(cover SHARP logo):1
- Cable clamp:3
- Camera mount:1
- Camera mount screw:1
- Pen tray:1
- Tray mount screw: 4
- Wireless adapter:1
- USB cable:1
- Touch pen:2
Optional:
- Shuttle PN-SPCi7W10C8GB signage PC
Cooling Method
Fanless - Convection
| Display Size |
64.5"
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
450 nits / cd/m2
|
| Touchscreen |
Yes, Infrared (IR)
|
| Inputs |
Front:
1x HDMI Rear: 2x HDMI 1x DisplayPort 1.2 1x DE-15/DB-15 (VGA) 1x 1/8" / 3.5 mm (Composite) 1x 1/8" / 3.5 mm (Analog Audio) |
| Outputs |
Rear:
1x HDMI 1x 1/8" / 3.5 mm (Analog Audio) 1x TOSLINK Optical (Digital Audio) |
| Wireless |
Wi-Fi 5 (802.11ac) / Bluetooth 4.2
*Via Included Adapter |
| USB I/O |
Front:
2x USB-A 3.0 / 3.1/3.2 Gen 1 (Photo/Audio/Control/Video) 1x USB-B 3.0 / 3.1/3.2 Gen 1 (Touchscreen Control) Rear: 1x USB-C (Unspecified Version) (DisplayPort Alt Mode/Photo/Audio/Charging/Touchscreen Control/Video) 2x USB-A 3.0 / 3.1/3.2 Gen 1 (Photo/Audio/Control/Video) 1x USB-B 3.0 / 3.1/3.2 Gen 1 (Touchscreen Control) |
| Ethernet I/O |
Rear: 1x RJ45 Gigabit Ethernet
|
| Other I/O |
Rear:
1x DE-9/DB-9 Serial (RS-232C) Control Input |
| Built-In Speakers |
Yes, 2x 15 W
|
Display
| Display Size |
64.5"
|
| Panel Type |
TFT LCD
|
| Aspect Ratio |
16:9
|
| Display Orientation |
Landscape
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
450 nits / cd/m2
|
| Lighting System |
Direct LED
|
| HDR Support |
No
|
| Contrast Ratio |
1200:1
|
| Response Time |
8 ms (GtG)
|
| Refresh Rate |
60 Hz
|
| Color Support |
1.07 Billion Colors (10-Bit)
|
| Viewing Angle (H x V) |
178 x 178°
|
| Horizontal Frequency |
31.5 to 135 kHz
|
| Vertical Frequency |
24 to 70 Hz
|
Surface
| Touchscreen |
Yes, Infrared (IR)
|
| Multi-Touch Points |
20
|
Video
| TV Tuner |
No
|
Connectivity
| Inputs |
Front:
1x HDMI Rear: 2x HDMI 1x DisplayPort 1.2 1x DE-15/DB-15 (VGA) 1x 1/8" / 3.5 mm (Composite) 1x 1/8" / 3.5 mm (Analog Audio) |
| Outputs |
Rear:
1x HDMI 1x 1/8" / 3.5 mm (Analog Audio) 1x TOSLINK Optical (Digital Audio) |
| HDCP Support |
Yes, Version 2.3
|
| Wireless |
Wi-Fi 5 (802.11ac) / Bluetooth 4.2
*Via Included Adapter |
| USB I/O |
Front:
2x USB-A 3.0 / 3.1/3.2 Gen 1 (Photo/Audio/Control/Video) 1x USB-B 3.0 / 3.1/3.2 Gen 1 (Touchscreen Control) Rear: 1x USB-C (Unspecified Version) (DisplayPort Alt Mode/Photo/Audio/Charging/Touchscreen Control/Video) 2x USB-A 3.0 / 3.1/3.2 Gen 1 (Photo/Audio/Control/Video) 1x USB-B 3.0 / 3.1/3.2 Gen 1 (Touchscreen Control) |
| Ethernet I/O |
Rear: 1x RJ45 Gigabit Ethernet
|
| Other I/O |
Rear:
1x DE-9/DB-9 Serial (RS-232C) Control Input |
| Number of OPS/Expansion Slots |
1
|
| Multi-Input Support (PIP/PBP) |
No
|
Speaker
| Built-In Speakers |
Yes, 2x 15 W
|
| Speaker Configuration |
2-Channel
|
Hardware
| Smart TV |
No
|
| CPU |
Quad-Core: Cortex A55
|
| Storage |
16 GB
|
| RAM |
4 GB
|
| OS Compatibility |
Computer: Windows 10 or Later / macOS 10.15 or Later / Chrome OS
Mobile: Android/iOS via Included Adapter |
| Built-In Mic |
No
|
Supported File Formats
| Supported Video File Types |
3GP, ASF, AVI, FLV, H.263, H.264/AVC, H.265/HEVC, MKV, MOV, MPEG, MPEG2, MPEG4, TS, VOB, VP8, VP9, WEBM
|
| Supported Audio File Types |
AAC, MP3, OGG
|
| Supported Photo File Types |
BMP, JPEG, JPG, PNG
|
Electrical
| Power Consumption |
Maximum: 390.0 W
Typical: 180.0 W Standby: 0.5 W |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Adapter Type |
Internal
|
General
| Operating Conditions |
41 to 95°F / 5 to 35°C at 20 to 80% Humidity
|
| VESA Mounting-Hole Pattern |
600 x 400 mm
|
| Lock Slot |
No
|
| Bezel Thickness |
21.9 mm (Right/Top/Left)
53.2 mm (Bottom) |
| Duty Cycle |
16 Hours / 7 Days
|
| Dimensions |
59.5 x 36.1 x 3.4" / 1511.6 x 917.9 x 85.9 mm
|
| Weight |
84.9 lb / 38.5 kg
|
| Marca | Sharp |
|---|---|
| MPN: | PN-LC652 |
