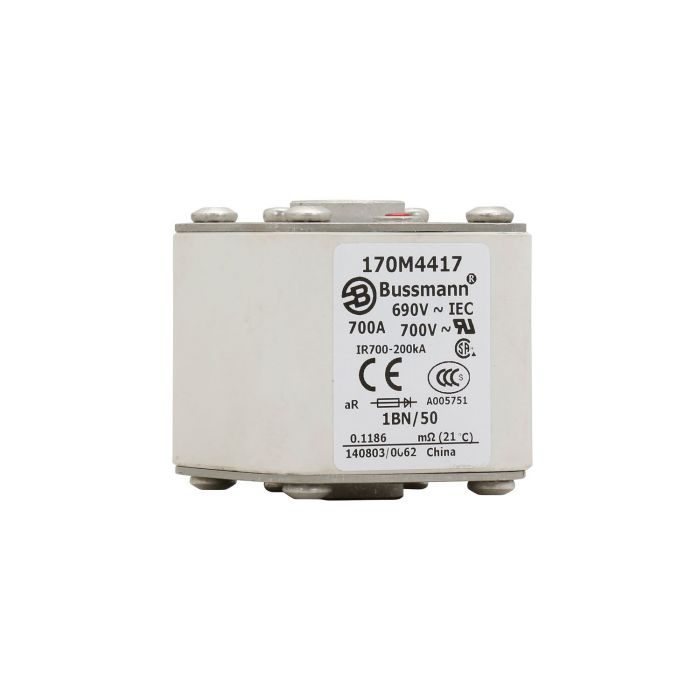

Bussmann 170M4417 eaton Fusible Semiconductor Tubo de Cerámica Europeo 700A 690V 1BN50 AR UC series high speed square body fuse, 700v (ul), 690v (iec), 700a, 200 kaic, none, class ar, flush
Precio especial $2,168.00 IVA incluido + Envio $150 MXN
Antes $2,515.00
Disponible 2 Pzas
Antes $2,515.00
Disponible 2 Pzas
sku: 170M4417
pub
MX0000105224
170M4417
General Specifications | |
---|---|
Product Name |
Eaton Bussmann series high speed square body fuse
|
Catalog Number |
170M4417
|
UPC |
051712258760
|
EAN |
5027590452915
|
Product Length/Depth |
107 mm
|
Product Height |
63 mm
|
Product Width |
53 mm
|
Product Weight |
381 g
|
Compliances |
CE Marked
RoHS Compliant |
Certifications |
IEC Rated
UL Recognized |
Especificaciones del producto | |
Amperage Rating |
700 A
|
Voltage rating |
690 V (IEC), 700 V (UL)
|
Voltage type |
AC
|
Clearing (I2T) |
465000 at 660 V
|
Pre arc (I2T) |
69500
|
Watt losses |
85 W
|
Breaking capacity |
200 kA
|
Class |
Class aR
|
Especificaciones del producto | |
Application |
Semiconductor, DC Common bus, DC drives, power converters/rectifiers
|
Fuse type |
Flush end
B/Visual indicator |
Fuse indicator |
None
|
Fuse size |
1
|
Marca | Bussman |
---|---|
MPN: | 170M4417 |
