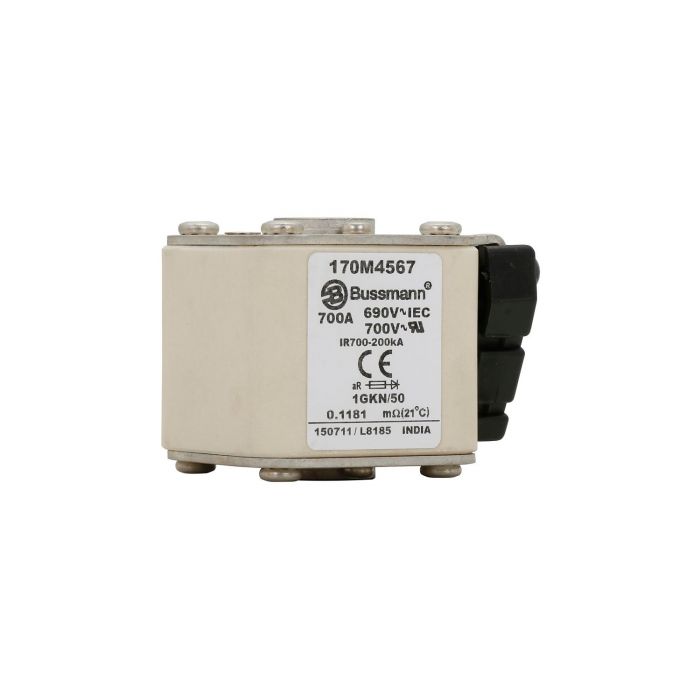

Bussmann 170M4567 Eaton Fusible Semiconductor Tubo de Ceramica Europeo 700A 690V 1GKN50 AR UC 170M4567 fuse-link, high speed, 700 a, ac 690 v, size 1, 53 x 69 51 mm, ar, iec, ul, single indicator
Precio especial $1,555.00 IVA incluido + Envio $150 MXN
Antes $1,804.00
Disponible 2 Pzas
Antes $1,804.00
Disponible 2 Pzas
sku: 170M4567
pub
MX0000105225
170M4567
General Specifications | |
---|---|
Product Name |
Eaton Bussmann series high speed square body fuse
|
Catalog Number |
170M4567
|
UPC |
051712812092
|
EAN |
5027590453561
|
Product Length/Depth |
73 mm
|
Product Height |
52 mm
|
Product Width |
170 mm
|
Product Weight |
399.3333333 g
|
Compliances |
CE Marked
RoHS Compliant |
Certifications |
IEC Rated
UL Recognized |
Especificaciones del producto | |
Amperage Rating |
700 A
|
Voltage rating |
690 V (IEC), 700 V (UL)
|
Voltage type |
AC
|
Clearing (I2T) |
465000 at 660 V
|
Pre arc (I2T) |
69500
|
Watt losses |
85 W
|
Breaking capacity |
200 kA
|
Class |
Class aR
|
Especificaciones del producto | |
Application |
Semiconductor, DC Common bus, DC drives, power converters/rectifiers
|
Fuse type |
Flush end
GKN/Type K indicator for micro |
Fuse indicator |
Centre fuse status indicator
|
Fuse size |
1
|
Fitted with: |
Type K Indicator for micro
|
Marca | Otros |
---|---|
MPN: | 170M4567 |
