Bussmann LPS-RK-50SP fusible rk1 doble elemento acción retardada 600vca/300vcd
Precio especial $979.00 IVA incluido + Envio $150 MXN
Antes $1,136.00
Disponible 4 Pzas
Antes $1,136.00
Disponible 4 Pzas
sku: LPS-RK-50SP
pub
MX0000105607
LPS-RK-50SP

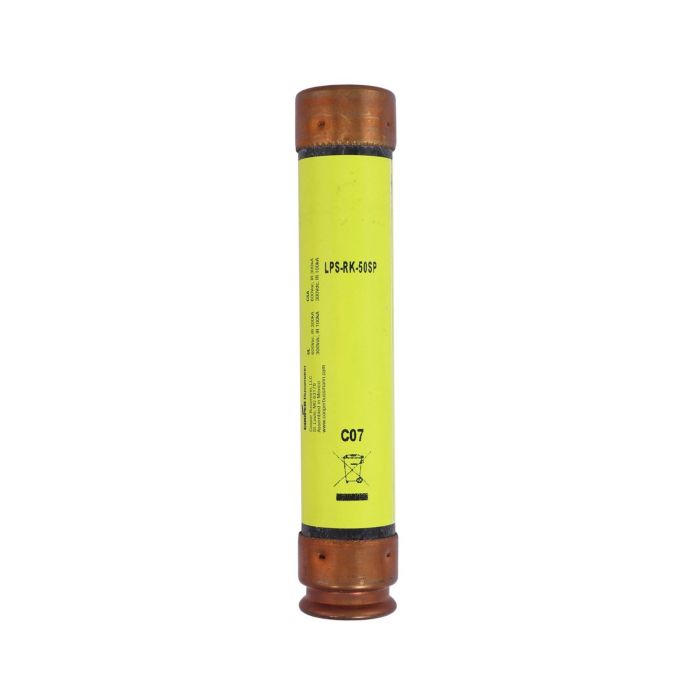

Eaton Bussmann Series Class RK1 fuse, LPS-RK, time-delay, dual-element, current limiting fuse, 50 A, non-indicating fuse, interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc
General Specifications | |
---|---|
Product Name |
Eaton Bussmann series LPS-RK fuse
|
Catalog Number |
LPS-RK-50SP
|
UPC |
051712548403
|
Product Length/Depth |
5.5 in
|
Product Height |
1.06 in
|
Product Width |
1.06 in
|
Product Weight |
2.6 lb
|
Compliances |
CE Marked
|
Especificaciones del producto | |
Type |
Low-peak fuse
|
Special features |
Electrically isolated end cap
|
Application |
Large distribution switchboards, power panelboards, motor control centers
|
Amperage Rating |
50 A
|
Number of elements |
Dual
|
Class |
Class RK1
|
Fuse type |
Time delay
Current-limiting |
Interrupt rating |
100 kAIC at 300 Vdc
300 kAIC at 600 Vac |
Fuse indicator |
Non-indicating
|
Connection |
Ferrule end x ferrule end
|
Response time |
10 sec at 500%
|
Packaging type |
Standard
|
Quantity |
10
|
Voltage rating |
600 Vac, 300 Vdc
|
Marca | Otros |
---|---|
MPN: | LPS-RK-50SP |
