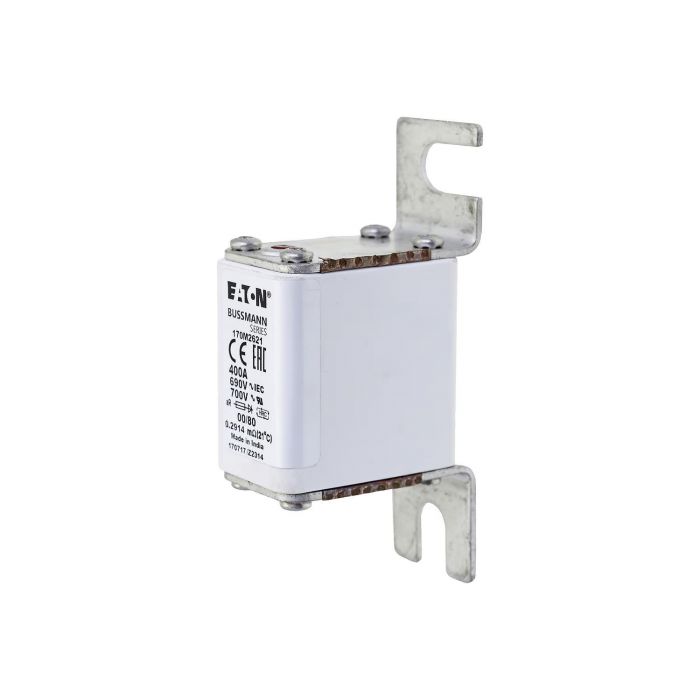

Bussmann 170M2621 eaton fusible semiconductor tubo de cerámica europeo 400a 690v 0080 ar ur series high speed square body fuse, 700v (ul), 690 v (iec), 400a, 200 kaic, top fuse status indicator, blade end x end, class ar, din 43 620
Precio especial $1,330.00 IVA incluido + Envio $150 MXN
Antes $1,543.00
Disponible 3 Pzas
Antes $1,543.00
Disponible 3 Pzas
sku: 170M2621
pub
MX0000105232
170M2621
General Specifications | |
---|---|
Product Name |
Eaton Bussmann series high speed square body fuse
|
Catalog Number |
170M2621
|
UPC |
051712799584
|
EAN |
5027590442312
|
Product Length/Depth |
98 mm
|
Product Height |
51 mm
|
Product Width |
28 mm
|
Product Weight |
230.3333333 g
|
Compliances |
CE Marked
RoHS Compliant |
Certifications |
UL Recognized
IEC Rated |
Especificaciones del producto | |
Amperage Rating |
400 A
|
Voltage rating |
690 V (IEC), 700 V (UL)
|
Voltage type |
AC
|
Clearing (I2T) |
125000 at 660 V
|
Pre arc (I2T) |
18000
|
Watt losses |
70 W
|
Breaking capacity |
200 kA
|
Class |
Class aR
|
Especificaciones del producto | |
Application |
Semiconductor, DC Common bus, DC drives, power converters/rectifiers
|
Fuse type |
DIN 43653
/80 Visual indicator |
Fuse indicator |
Top fuse status indicator
|
Fuse size |
00
|
Marca | Otros |
---|---|
MPN: | 170M2621 |
